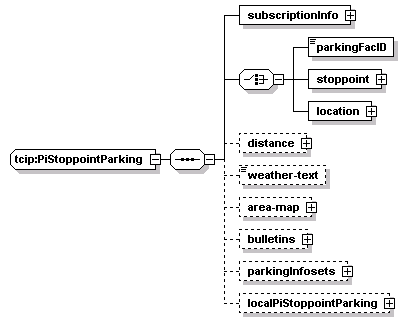

complexType tcip:PiStoppointParking

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo parkingFacID stoppoint location distance weather-text area-map bulletins parkingInfosets localPiStoppointParking
used by	element  tcip:piStoppointParking
source	<xs:complexType name="PiStoppointParking">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:choice>       <xs:element name="parkingFacID" type="PI-ParkingFacID"/>       <xs:element name="stoppoint" type="CPTStoppointIden"/>       <xs:element name="location" type="lrms:GeoLocation"/>     </xs:choice>     <xs:element name="distance" type="lrms:Distance" minOccurs="0"/>     <xs:element name="weather-text" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="area-map" type="PIMap" minOccurs="0"/>     <xs:element name="bulletins" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="bulletin" type="PIServiceBulletin"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="parkingInfosets" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="parkingInfoset" type="PIParkingFacility"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localPiStoppointParking" type="local:PiStoppointParking" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PiStoppointParking/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:PiStoppointParking/parkingFacID

diagram
type	tcip:PI-ParkingFacID
properties	isRef  0 content  simple
source	<xs:element name="parkingFacID" type="PI-ParkingFacID"/>

element tcip:PiStoppointParking/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:PiStoppointParking/location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="location" type="lrms:GeoLocation"/>

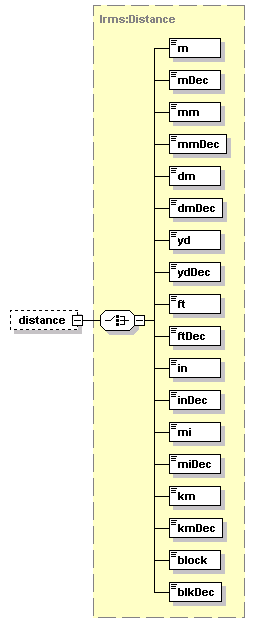

element tcip:PiStoppointParking/distance

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="distance" type="lrms:Distance" minOccurs="0"/>

element tcip:PiStoppointParking/weather-text

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="weather-text" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiStoppointParking/area-map

diagram
type	tcip:PIMap
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	map-image map-format map-URL map-headline map-footnote itineraryID
source	<xs:element name="area-map" type="PIMap" minOccurs="0"/>

element tcip:PiStoppointParking/bulletins

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	bulletin
source	<xs:element name="bulletins" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="bulletin" type="PIServiceBulletin"/>     </xs:sequence>   </xs:complexType> </xs:element>

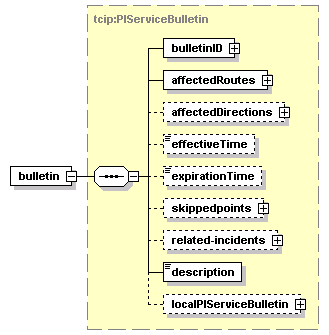

element tcip:PiStoppointParking/bulletins/bulletin

diagram
type	tcip:PIServiceBulletin
properties	isRef  0 content  complex
children	bulletinID affectedRoutes affectedDirections effectiveTime expirationTime skippedpoints related-incidents description localPIServiceBulletin
source	<xs:element name="bulletin" type="PIServiceBulletin"/>

element tcip:PiStoppointParking/parkingInfosets

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	parkingInfoset
source	<xs:element name="parkingInfosets" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="parkingInfoset" type="PIParkingFacility"/>     </xs:sequence>   </xs:complexType> </xs:element>

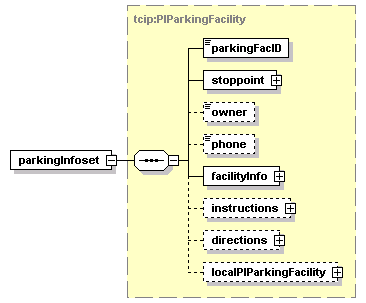

element tcip:PiStoppointParking/parkingInfosets/parkingInfoset

diagram
type	tcip:PIParkingFacility
properties	isRef  0 content  complex
children	parkingFacID stoppoint owner phone facilityInfo instructions directions localPIParkingFacility
source	<xs:element name="parkingInfoset" type="PIParkingFacility"/>

element tcip:PiStoppointParking/localPiStoppointParking

diagram
type	PiStoppointParking
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPiStoppointParking" type="local:PiStoppointParking" minOccurs="0"/>
