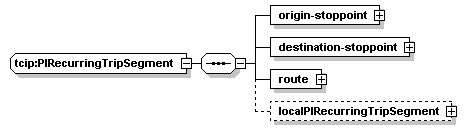

complexType tcip:PIRecurringTripSegment

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	origin-stoppoint destination-stoppoint route localPIRecurringTripSegment
used by	element  tcip:PIRecurringTrip/trip-segments/trip-segment
source	<xs:complexType name="PIRecurringTripSegment">   <xs:sequence>     <xs:element name="origin-stoppoint" type="CPTStoppointIden"/>     <xs:element name="destination-stoppoint" type="CPTStoppointIden"/>     <xs:element name="route" type="SCHRouteIden"/>     <xs:element name="localPIRecurringTripSegment" type="local:PIRecurringTripSegment" minOccurs="0"/>   </xs:sequence> </xs:complexType>

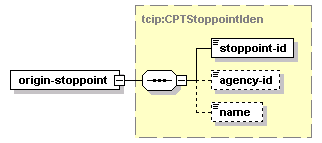

element tcip:PIRecurringTripSegment/origin-stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="origin-stoppoint" type="CPTStoppointIden"/>

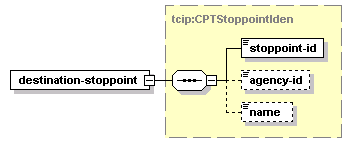

element tcip:PIRecurringTripSegment/destination-stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="destination-stoppoint" type="CPTStoppointIden"/>

element tcip:PIRecurringTripSegment/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden"/>

element tcip:PIRecurringTripSegment/localPIRecurringTripSegment

diagram
type	PIRecurringTripSegment
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPIRecurringTripSegment" type="local:PIRecurringTripSegment" minOccurs="0"/>
