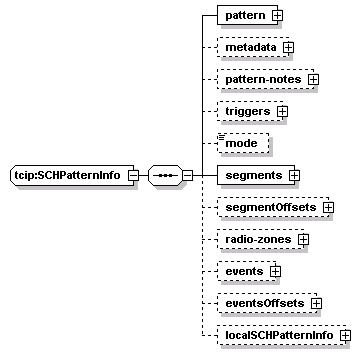

complexType tcip:SCHPatternInfo
diagram
namespace http://www.TCIP-Adopted-03-00-01
children pattern metadata pattern-notes triggers mode segments segmentOffsets radio-zones events eventsOffsets localSCHPatternInfo
used by
elements tcip:SchPatternFile/patterns/pattern tcip:SchPatternList/patterns/pattern tcip:SchPushPatterns/patterns/pattern
source <xs:complexType name="SCHPatternInfo">
  <xs:sequence>
    <xs:element name="pattern" type="SCHPatternIden"/>
    <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>
    <xs:element name="pattern-notes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="pattern-note" type="SCHNoteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="triggers" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="trigger" type="SCH-ActivationID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="mode" type="CPT-Mode" minOccurs="0"/>
    <xs:element name="segments">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="segment" type="SCHPatternSegmentIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="segmentOffsets" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="segmentOffset" type="lrms:Distance"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="radio-zones" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="radio-zone" type="CPTRadioZone"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="events" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="event" type="SCHEvent"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eventsOffsets" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="eventsOffset" type="lrms:Distance"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSCHPatternInfo" type="local:SCHPatternInfo" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:SCHPatternInfo/pattern
diagram
type tcip:SCHPatternIden
properties
isRef 0
content complex
children pattern-id agency-id designator name
source <xs:element name="pattern" type="SCHPatternIden"/>

element tcip:SCHPatternInfo/metadata
diagram
type tcip:CPTRowMetaData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children created effective expiration activation deactivation updated
source <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:SCHPatternInfo/pattern-notes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children pattern-note
source <xs:element name="pattern-notes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="pattern-note" type="SCHNoteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHPatternInfo/pattern-notes/pattern-note
diagram
type tcip:SCHNoteIden
properties
isRef 0
content complex
children note-id agency-id note-des
source <xs:element name="pattern-note" type="SCHNoteIden"/>

element tcip:SCHPatternInfo/triggers
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children trigger
source <xs:element name="triggers" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="trigger" type="SCH-ActivationID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHPatternInfo/triggers/trigger
diagram
type tcip:SCH-ActivationID
properties
isRef 0
content simple
source <xs:element name="trigger" type="SCH-ActivationID"/>

element tcip:SCHPatternInfo/mode
diagram
type tcip:CPT-Mode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 2
source <xs:element name="mode" type="CPT-Mode" minOccurs="0"/>

element tcip:SCHPatternInfo/segments
diagram
properties
isRef 0
content complex
children segment
source <xs:element name="segments">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="segment" type="SCHPatternSegmentIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHPatternInfo/segments/segment
diagram
type tcip:SCHPatternSegmentIden
properties
isRef 0
content complex
children segment-id agency-id name
source <xs:element name="segment" type="SCHPatternSegmentIden"/>

element tcip:SCHPatternInfo/segmentOffsets
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children segmentOffset
source <xs:element name="segmentOffsets" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="segmentOffset" type="lrms:Distance"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

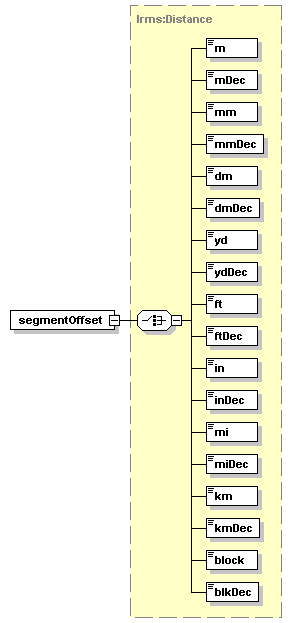

element tcip:SCHPatternInfo/segmentOffsets/segmentOffset
diagram
type lrms:Distance
properties
isRef 0
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="segmentOffset" type="lrms:Distance"/>

element tcip:SCHPatternInfo/radio-zones
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children radio-zone
source <xs:element name="radio-zones" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="radio-zone" type="CPTRadioZone"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHPatternInfo/radio-zones/radio-zone
diagram
type tcip:CPTRadioZone
properties
isRef 0
content complex
children radioZone channelList zone comment
source <xs:element name="radio-zone" type="CPTRadioZone"/>

element tcip:SCHPatternInfo/events
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event
source <xs:element name="events" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="event" type="SCHEvent"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

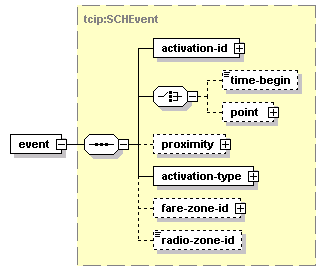

element tcip:SCHPatternInfo/events/event
diagram
type tcip:SCHEvent
properties
isRef 0
content complex
children activation-id time-begin point proximity activation-type fare-zone-id radio-zone-id
source <xs:element name="event" type="SCHEvent"/>

element tcip:SCHPatternInfo/eventsOffsets
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children eventsOffset
source <xs:element name="eventsOffsets" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="eventsOffset" type="lrms:Distance"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

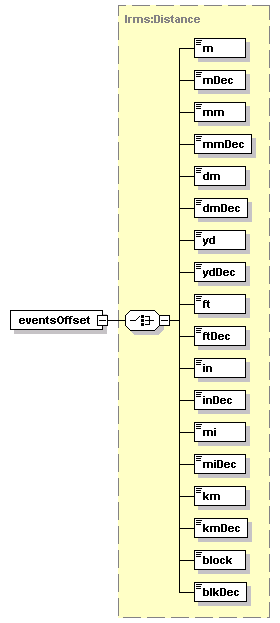

element tcip:SCHPatternInfo/eventsOffsets/eventsOffset
diagram
type lrms:Distance
properties
isRef 0
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="eventsOffset" type="lrms:Distance"/>

element tcip:SCHPatternInfo/localSCHPatternInfo
diagram
type SCHPatternInfo
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSCHPatternInfo" type="local:SCHPatternInfo" minOccurs="0"/>
