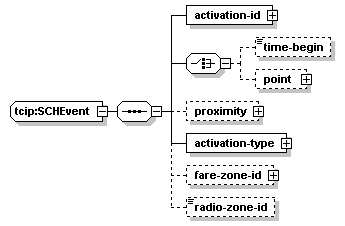

complexType tcip:SCHEvent
diagram
namespace http://www.TCIP-Adopted-03-00-01
children activation-id time-begin point proximity activation-type fare-zone-id radio-zone-id
used by
elements tcip:CCPTVTripData/event-List/event tcip:SCHPatternInfo/events/event tcip:SCHPatternSegment/events/event tcip:SCHTripInfo/events/event tcip:SCHTrip/event/event-item
source <xs:complexType name="SCHEvent">
  <xs:sequence>
    <xs:element name="activation-id">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="activation-id-item" type="SCH-ActivationID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:choice>
      <xs:element name="time-begin" type="SCH-Time" minOccurs="0"/>
      <xs:element name="point" type="lrms:GeoLocation" minOccurs="0"/>
    </xs:choice>
    <xs:element name="proximity" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="activation-type">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="activation-type-item" type="SCH-ActivationType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="fare-zone-id" type="FCFareZoneIden" minOccurs="0"/>
    <!-- present only for activation-type fare zone -->
    <xs:element name="radio-zone-id" type="CPT-RadioZoneID" minOccurs="0"/>
    <!-- present only for activation-type radio-zone -->
  </xs:sequence>
</xs:complexType>

element tcip:SCHEvent/activation-id
diagram
properties
isRef 0
content complex
children activation-id-item
source <xs:element name="activation-id">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="activation-id-item" type="SCH-ActivationID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHEvent/activation-id/activation-id-item
diagram
type tcip:SCH-ActivationID
properties
isRef 0
content simple
source <xs:element name="activation-id-item" type="SCH-ActivationID"/>

element tcip:SCHEvent/time-begin
diagram
type tcip:SCH-Time
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="time-begin" type="SCH-Time" minOccurs="0"/>

element tcip:SCHEvent/point
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
source <xs:element name="point" type="lrms:GeoLocation" minOccurs="0"/>

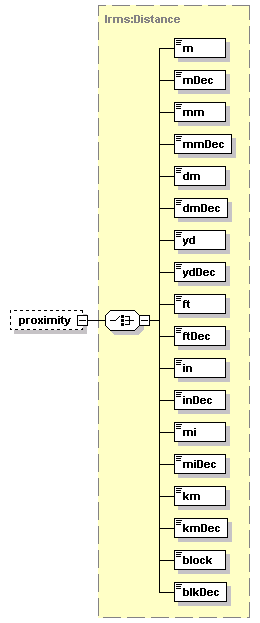

element tcip:SCHEvent/proximity
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="proximity" type="lrms:Distance" minOccurs="0"/>

element tcip:SCHEvent/activation-type
diagram
properties
isRef 0
content complex
children activation-type-item
source <xs:element name="activation-type">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="activation-type-item" type="SCH-ActivationType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHEvent/activation-type/activation-type-item
diagram
type tcip:SCH-ActivationType
properties
isRef 0
content simple
source <xs:element name="activation-type-item" type="SCH-ActivationType"/>

element tcip:SCHEvent/fare-zone-id
diagram
type tcip:FCFareZoneIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children zone-id agency-id zone-name
source <xs:element name="fare-zone-id" type="FCFareZoneIden" minOccurs="0"/>

element tcip:SCHEvent/radio-zone-id
diagram
type tcip:CPT-RadioZoneID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="radio-zone-id" type="CPT-RadioZoneID" minOccurs="0"/>
