complexType tcip:SchReportValidationErrors

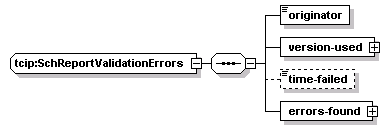

diagram
namespace http://www.TCIP-Adopted-03-00-01
children originator version-used time-failed errors-found
used by
element tcip:schReportValidationErrors
source <xs:complexType name="SchReportValidationErrors">
  <xs:sequence>
    <xs:element name="originator" type="CPT-ApplicationID"/>
    <xs:element name="version-used" type="SCHRouteVersion"/>
    <xs:element name="time-failed" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="errors-found">
      <xs:complexType>
        <xs:sequence maxOccurs="300">
          <xs:element name="errors-found-item" type="SCHValidationError"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:SchReportValidationErrors/originator
diagram
type tcip:CPT-ApplicationID
properties
isRef 0
content simple
source <xs:element name="originator" type="CPT-ApplicationID"/>

element tcip:SchReportValidationErrors/version-used

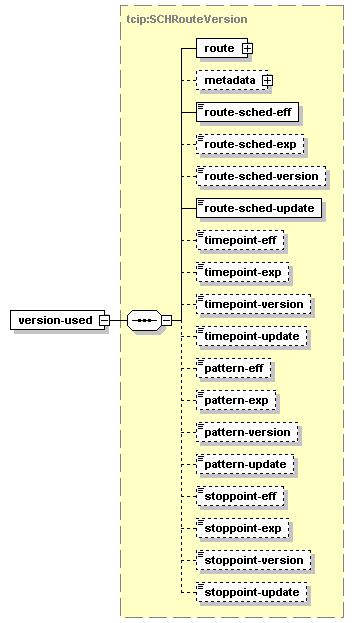

diagram
type tcip:SCHRouteVersion
properties
isRef 0
content complex
children route metadata route-sched-eff route-sched-exp route-sched-version route-sched-update timepoint-eff timepoint-exp timepoint-version timepoint-update pattern-eff pattern-exp pattern-version pattern-update stoppoint-eff stoppoint-exp stoppoint-version stoppoint-update
source <xs:element name="version-used" type="SCHRouteVersion"/>

element tcip:SchReportValidationErrors/time-failed
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="time-failed" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchReportValidationErrors/errors-found
diagram
properties
isRef 0
content complex
children errors-found-item
source <xs:element name="errors-found">
  <xs:complexType>
    <xs:sequence maxOccurs="300">
      <xs:element name="errors-found-item" type="SCHValidationError"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SchReportValidationErrors/errors-found/errors-found-item

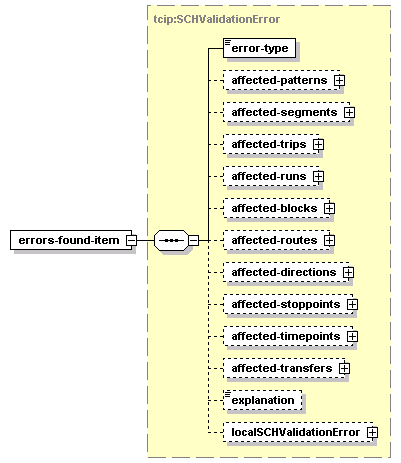

diagram
type tcip:SCHValidationError
properties
isRef 0
content complex
children error-type affected-patterns affected-segments affected-trips affected-runs affected-blocks affected-routes affected-directions affected-stoppoints affected-timepoints affected-transfers explanation localSCHValidationError
source <xs:element name="errors-found-item" type="SCHValidationError"/>
