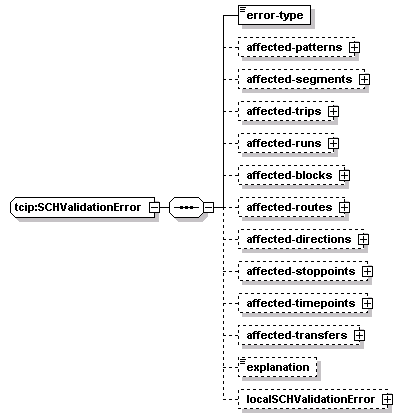

complexType tcip:SCHValidationError
diagram
namespace http://www.TCIP-Adopted-03-00-01
children error-type affected-patterns affected-segments affected-trips affected-runs affected-blocks affected-routes affected-directions affected-stoppoints affected-timepoints affected-transfers explanation localSCHValidationError
used by
element tcip:SchReportValidationErrors/errors-found/errors-found-item
source <xs:complexType name="SCHValidationError">
  <xs:sequence>
    <xs:element name="error-type" type="SCH-ValidationErrorType"/>
    <xs:element name="affected-patterns" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-pattern" type="SCHPatternIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-segments" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-segment" type="SCHPatternSegmentIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-trips" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-trip" type="SCHTripIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-runs" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-run" type="SCHRunIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-blocks" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-block" type="SCHBlockIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-directions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-direction" type="SCH-RouteDirectionName"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-stoppoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-timepoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-timepoint" type="SCHTimepointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="affected-transfers" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="affected-transfer" type="SCH-TransferID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="explanation" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="localSCHValidationError" type="local:SCHValidationError" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:SCHValidationError/error-type
diagram
type tcip:SCH-ValidationErrorType
properties
isRef 0
content simple
source <xs:element name="error-type" type="SCH-ValidationErrorType"/>

element tcip:SCHValidationError/affected-patterns
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-pattern
source <xs:element name="affected-patterns" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-pattern" type="SCHPatternIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

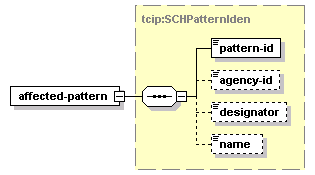

element tcip:SCHValidationError/affected-patterns/affected-pattern
diagram
type tcip:SCHPatternIden
properties
isRef 0
content complex
children pattern-id agency-id designator name
source <xs:element name="affected-pattern" type="SCHPatternIden"/>

element tcip:SCHValidationError/affected-segments
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-segment
source <xs:element name="affected-segments" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-segment" type="SCHPatternSegmentIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

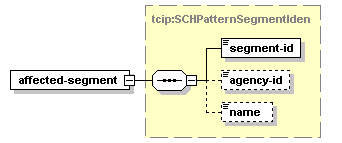

element tcip:SCHValidationError/affected-segments/affected-segment
diagram
type tcip:SCHPatternSegmentIden
properties
isRef 0
content complex
children segment-id agency-id name
source <xs:element name="affected-segment" type="SCHPatternSegmentIden"/>

element tcip:SCHValidationError/affected-trips
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-trip
source <xs:element name="affected-trips" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-trip" type="SCHTripIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHValidationError/affected-trips/affected-trip
diagram
type tcip:SCHTripIden
properties
isRef 0
content complex
children trip-id agency-id designator
source <xs:element name="affected-trip" type="SCHTripIden"/>

element tcip:SCHValidationError/affected-runs
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-run
source <xs:element name="affected-runs" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-run" type="SCHRunIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHValidationError/affected-runs/affected-run
diagram
type tcip:SCHRunIden
properties
isRef 0
content complex
children run-id agency-id designator
source <xs:element name="affected-run" type="SCHRunIden"/>

element tcip:SCHValidationError/affected-blocks
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-block
source <xs:element name="affected-blocks" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-block" type="SCHBlockIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

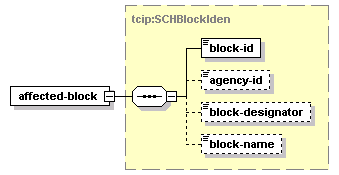

element tcip:SCHValidationError/affected-blocks/affected-block
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="affected-block" type="SCHBlockIden"/>

element tcip:SCHValidationError/affected-routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-route
source <xs:element name="affected-routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHValidationError/affected-routes/affected-route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="affected-route" type="SCHRouteIden"/>

element tcip:SCHValidationError/affected-directions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-direction
source <xs:element name="affected-directions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-direction" type="SCH-RouteDirectionName"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHValidationError/affected-directions/affected-direction
diagram
type tcip:SCH-RouteDirectionName
properties
isRef 0
content simple
source <xs:element name="affected-direction" type="SCH-RouteDirectionName"/>

element tcip:SCHValidationError/affected-stoppoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-stoppoint
source <xs:element name="affected-stoppoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

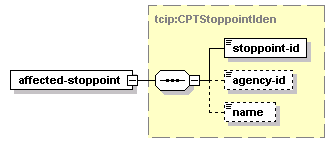

element tcip:SCHValidationError/affected-stoppoints/affected-stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="affected-stoppoint" type="CPTStoppointIden"/>

element tcip:SCHValidationError/affected-timepoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-timepoint
source <xs:element name="affected-timepoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-timepoint" type="SCHTimepointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

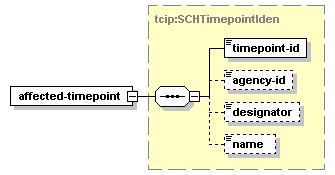

element tcip:SCHValidationError/affected-timepoints/affected-timepoint
diagram
type tcip:SCHTimepointIden
properties
isRef 0
content complex
children timepoint-id agency-id designator name
source <xs:element name="affected-timepoint" type="SCHTimepointIden"/>

element tcip:SCHValidationError/affected-transfers
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children affected-transfer
source <xs:element name="affected-transfers" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="affected-transfer" type="SCH-TransferID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHValidationError/affected-transfers/affected-transfer
diagram
type tcip:SCH-TransferID
properties
isRef 0
content simple
source <xs:element name="affected-transfer" type="SCH-TransferID"/>

element tcip:SCHValidationError/explanation
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="explanation" type="CPT-Footnote" minOccurs="0"/>

element tcip:SCHValidationError/localSCHValidationError
diagram
type SCHValidationError
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSCHValidationError" type="local:SCHValidationError" minOccurs="0"/>
