complexType tcip:SCHServiceAtStop

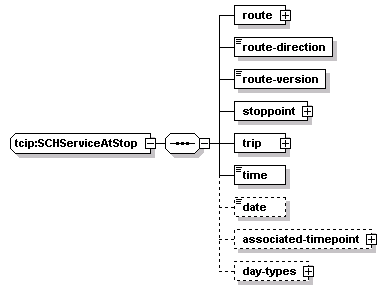

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	route route-direction route-version stoppoint trip time date associated-timepoint day-types
used by	elements  tcip:SCHTransferInfo/drop-off tcip:SCHTransferInfo/pick-up tcip:SchStopServiceList/service/service-item
source	<xs:complexType name="SCHServiceAtStop">   <xs:sequence>     <xs:element name="route" type="SCHRouteIden"/>     <xs:element name="route-direction" type="SCH-RouteDirectionName"/>     <xs:element name="route-version" type="SCH-TimetableVersionID"/>     <xs:element name="stoppoint" type="CPTStoppointIden"/>     <xs:element name="trip" type="SCHTripIden"/>     <xs:element name="time" type="SCH-Time"/>     <xs:element name="date" type="CPT-Date" minOccurs="0"/>     <xs:element name="associated-timepoint" type="SCHTimepointIden" minOccurs="0"/>     <xs:element name="day-types" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="day-type" type="SCH-DayType"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:SCHServiceAtStop/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden"/>

element tcip:SCHServiceAtStop/route-direction

diagram
type	tcip:SCH-RouteDirectionName
properties	isRef  0 content  simple
source	<xs:element name="route-direction" type="SCH-RouteDirectionName"/>

element tcip:SCHServiceAtStop/route-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 content  simple
source	<xs:element name="route-version" type="SCH-TimetableVersionID"/>

element tcip:SCHServiceAtStop/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:SCHServiceAtStop/trip

diagram
type	tcip:SCHTripIden
properties	isRef  0 content  complex
children	trip-id agency-id designator
source	<xs:element name="trip" type="SCHTripIden"/>

element tcip:SCHServiceAtStop/time

diagram
type	tcip:SCH-Time
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="time" type="SCH-Time"/>

element tcip:SCHServiceAtStop/date

diagram
type	tcip:CPT-Date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="date" type="CPT-Date" minOccurs="0"/>

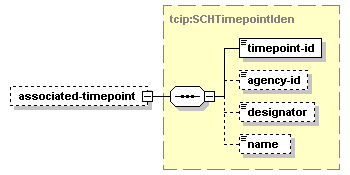

element tcip:SCHServiceAtStop/associated-timepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="associated-timepoint" type="SCHTimepointIden" minOccurs="0"/>

element tcip:SCHServiceAtStop/day-types

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	day-type
source	<xs:element name="day-types" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="day-type" type="SCH-DayType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHServiceAtStop/day-types/day-type

diagram
type	tcip:SCH-DayType
properties	isRef  0 content  simple
source	<xs:element name="day-type" type="SCH-DayType"/>
