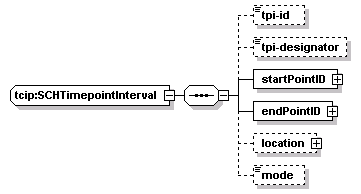

complexType tcip:SCHTimepointInterval

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	tpi-id tpi-designator startPointID endPointID location mode
used by	elements  tcip:SchRunningTimeList/timepoint-intervals/timepoint-interval tcip:SchRunningTimeListSub/timepoint-intervals/timepoint-interval
source	<xs:complexType name="SCHTimepointInterval">   <xs:sequence>     <xs:element name="tpi-id" type="SCH-TimepointIntervalID" minOccurs="0"/>     <xs:element name="tpi-designator" type="SCH-TimepointIntervalDes" minOccurs="0"/>     <xs:element name="startPointID" type="SCHTimepointIden"/>     <!-- terminus of interval -->     <xs:element name="endPointID" type="SCHTimepointIden"/>     <!-- terminus of interval -->     <xs:element name="location" type="atis:Route" minOccurs="0"/>     <xs:element name="mode" type="CPT-Mode" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHTimepointInterval/tpi-id

diagram
type	tcip:SCH-TimepointIntervalID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tpi-id" type="SCH-TimepointIntervalID" minOccurs="0"/>

element tcip:SCHTimepointInterval/tpi-designator

diagram
type	tcip:SCH-TimepointIntervalDes
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="tpi-designator" type="SCH-TimepointIntervalDes" minOccurs="0"/>

element tcip:SCHTimepointInterval/startPointID

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="startPointID" type="SCHTimepointIden"/>

element tcip:SCHTimepointInterval/endPointID

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="endPointID" type="SCHTimepointIden"/>

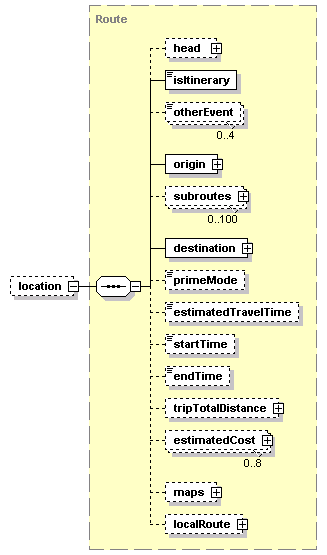

element tcip:SCHTimepointInterval/location

diagram
type	Route
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source	<xs:element name="location" type="atis:Route" minOccurs="0"/>

element tcip:SCHTimepointInterval/mode

diagram
type	tcip:CPT-Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xs:element name="mode" type="CPT-Mode" minOccurs="0"/>
