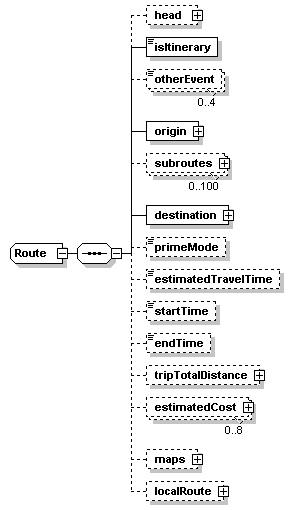

complexType Route
diagram
namespace http://www.ATIS-Draft-03-00-79
children head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
used by
elements tcip:PiTripItineraryList/alternatives/alternative ResponseGroup/detour tcip:PiDirections/itinerary tcip:PiItineraryFare/itineraries/itinerary tcip:PiItineraryFareSub/itinerarys/itinerary tcip:PiItineraryMap/itinerarys/itinerary tcip:PiItineraryMapSub/itinerarys/itinerary tcip:SCHTimepointInterval/location tcip:IMResponseUnit/response-route tcip:PiTripItineraryList/returnAlternatives/returnAlternative ResponseGroup/route RouteOrLocation/route tcip:IMIncident/route-location RouteRequest/routeOutline
source <xs:complexType name="Route">
  <xs:sequence>
    <xs:element name="head" type="Head" minOccurs="0"/>
    <xs:element name="isItinerary">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- set true if details present -->
    <xs:element name="otherEvent" type="im:ReferenceID" minOccurs="0" maxOccurs="4"/>
    <xs:element name="origin" type="lrms:PointLocation"/>
    <xs:element name="subroutes" type="SubRoute" minOccurs="0" maxOccurs="100"/>
    <xs:element name="destination" type="lrms:PointLocation"/>
    <xs:element name="primeMode" type="Mode" minOccurs="0"/>
    <!-- primary mode of travel -->
    <xs:element name="estimatedTravelTime" type="TimeInterval" minOccurs="0"/>
    <xs:element name="startTime" type="DateTimePair" minOccurs="0"/>
    <xs:element name="endTime" type="DateTimePair" minOccurs="0"/>
    <xs:element name="tripTotalDistance" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="estimatedCost" type="ComplexCost" minOccurs="0" maxOccurs="8"/>
    <xs:element name="maps" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="map">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="mapLink" type="URL-Link" minOccurs="0"/>
                <!-- Points to a graphic depicting the route or part of it. -->
                <xs:element name="descr" type="Freetext" minOccurs="0"/>
                <!-- A name or description for the map -->
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localRoute" type="local:Route" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

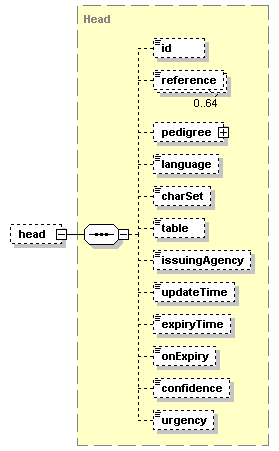

element Route/head
diagram
type Head
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source <xs:element name="head" type="Head" minOccurs="0"/>

element Route/isItinerary
diagram
type restriction of xs:boolean
properties
isRef 0
content simple
source <xs:element name="isItinerary">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element Route/otherEvent
diagram
type im:ReferenceID
properties
isRef 0
minOcc 0
maxOcc 4
content simple
facets
minLength 1
maxLength 64
source <xs:element name="otherEvent" type="im:ReferenceID" minOccurs="0" maxOccurs="4"/>

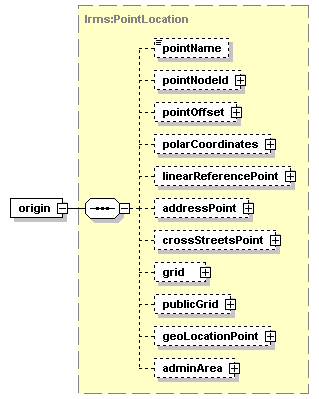

element Route/origin
diagram
type lrms:PointLocation
properties
isRef 0
content complex
children pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes
Name  Type  Use  Default  Fixed  annotation
locationIDlrms:String-index64
source <xs:element name="origin" type="lrms:PointLocation"/>

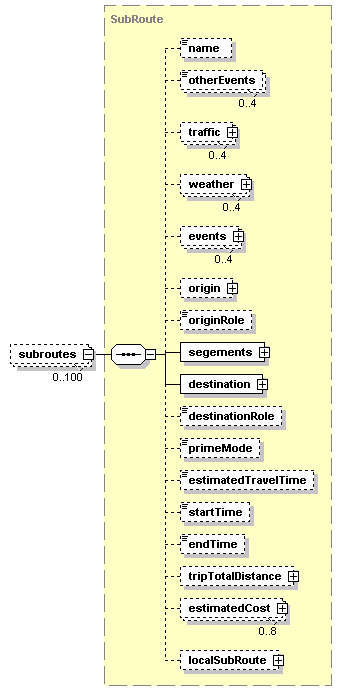

element Route/subroutes
diagram
type SubRoute
properties
isRef 0
minOcc 0
maxOcc 100
content complex
children name otherEvents traffic weather events origin originRole segements destination destinationRole primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost localSubRoute
source <xs:element name="subroutes" type="SubRoute" minOccurs="0" maxOccurs="100"/>

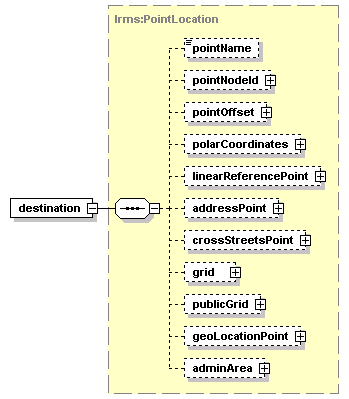

element Route/destination
diagram
type lrms:PointLocation
properties
isRef 0
content complex
children pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes
Name  Type  Use  Default  Fixed  annotation
locationIDlrms:String-index64
source <xs:element name="destination" type="lrms:PointLocation"/>

element Route/primeMode
diagram
type Mode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="primeMode" type="Mode" minOccurs="0"/>

element Route/estimatedTravelTime
diagram
type TimeInterval
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="estimatedTravelTime" type="TimeInterval" minOccurs="0"/>

element Route/startTime
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="startTime" type="DateTimePair" minOccurs="0"/>

element Route/endTime
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="endTime" type="DateTimePair" minOccurs="0"/>

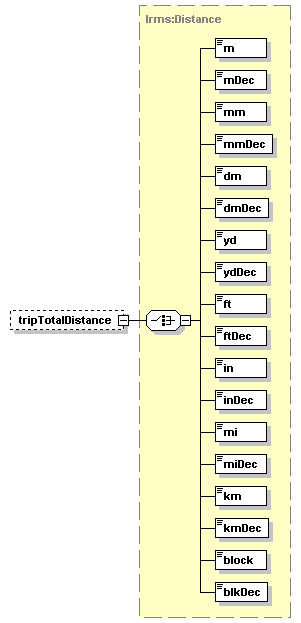

element Route/tripTotalDistance
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="tripTotalDistance" type="lrms:Distance" minOccurs="0"/>

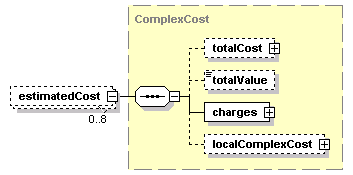

element Route/estimatedCost
diagram
type ComplexCost
properties
isRef 0
minOcc 0
maxOcc 8
content complex
children totalCost totalValue charges localComplexCost
source <xs:element name="estimatedCost" type="ComplexCost" minOccurs="0" maxOccurs="8"/>

element Route/maps
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children map
source <xs:element name="maps" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="map">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="mapLink" type="URL-Link" minOccurs="0"/>
            <!-- Points to a graphic depicting the route or part of it. -->
            <xs:element name="descr" type="Freetext" minOccurs="0"/>
            <!-- A name or description for the map -->
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Route/maps/map
diagram
properties
isRef 0
content complex
children mapLink descr
source <xs:element name="map">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="mapLink" type="URL-Link" minOccurs="0"/>
      <!-- Points to a graphic depicting the route or part of it. -->
      <xs:element name="descr" type="Freetext" minOccurs="0"/>
      <!-- A name or description for the map -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Route/maps/map/mapLink
diagram
type URL-Link
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="mapLink" type="URL-Link" minOccurs="0"/>

element Route/maps/map/descr
diagram
type Freetext
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 500
source <xs:element name="descr" type="Freetext" minOccurs="0"/>

element Route/localRoute
diagram
type local:Route
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localRoute" type="local:Route" minOccurs="0"/>
