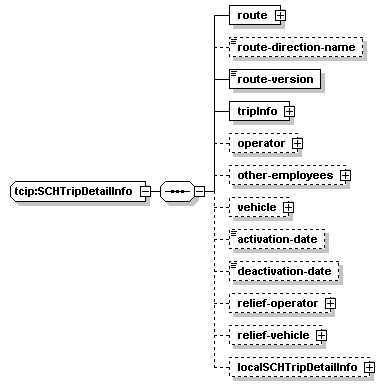

complexType tcip:SCHTripDetailInfo

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	route route-direction-name route-version tripInfo operator other-employees vehicle activation-date deactivation-date relief-operator relief-vehicle localSCHTripDetailInfo
used by	element  tcip:SchTripDetailList/trip-details/trip-detail
source	<xs:complexType name="SCHTripDetailInfo">   <xs:sequence>     <xs:element name="route" type="SCHRouteIden"/>     <xs:element name="route-direction-name" type="SCH-RouteDirectionName" minOccurs="0"/>     <xs:element name="route-version" type="SCH-TimetableVersionID"/>     <xs:element name="tripInfo" type="SCHTripInfo"/>     <xs:element name="operator" type="CPTOperatorIden" minOccurs="0"/>     <xs:element name="other-employees" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="other-employee" type="CPTEmployeeIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="activation-date" type="CPT-Date" minOccurs="0"/>     <xs:element name="deactivation-date" type="CPT-Date" minOccurs="0"/>     <xs:element name="relief-operator" type="CPTOperatorIden" minOccurs="0"/>     <xs:element name="relief-vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="localSCHTripDetailInfo" type="local:SCHTripDetailInfo" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHTripDetailInfo/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden"/>

element tcip:SCHTripDetailInfo/route-direction-name

diagram
type	tcip:SCH-RouteDirectionName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="route-direction-name" type="SCH-RouteDirectionName" minOccurs="0"/>

element tcip:SCHTripDetailInfo/route-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 content  simple
source	<xs:element name="route-version" type="SCH-TimetableVersionID"/>

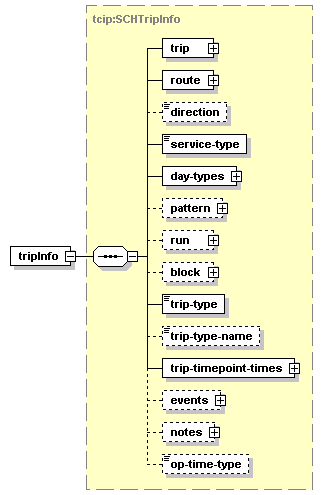

element tcip:SCHTripDetailInfo/tripInfo

diagram
type	tcip:SCHTripInfo
properties	isRef  0 content  complex
children	trip route direction service-type day-types pattern run block trip-type trip-type-name trip-timepoint-times events notes op-time-type
source	<xs:element name="tripInfo" type="SCHTripInfo"/>

element tcip:SCHTripDetailInfo/operator

diagram
type	tcip:CPTOperatorIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	operator-id agency-id designator employee-id
source	<xs:element name="operator" type="CPTOperatorIden" minOccurs="0"/>

element tcip:SCHTripDetailInfo/other-employees

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	other-employee
source	<xs:element name="other-employees" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="other-employee" type="CPTEmployeeIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

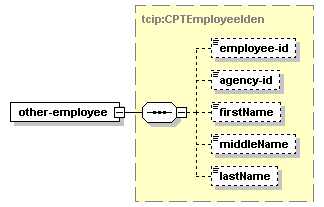

element tcip:SCHTripDetailInfo/other-employees/other-employee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="other-employee" type="CPTEmployeeIden"/>

element tcip:SCHTripDetailInfo/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>

element tcip:SCHTripDetailInfo/activation-date

diagram
type	tcip:CPT-Date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="activation-date" type="CPT-Date" minOccurs="0"/>

element tcip:SCHTripDetailInfo/deactivation-date

diagram
type	tcip:CPT-Date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="deactivation-date" type="CPT-Date" minOccurs="0"/>

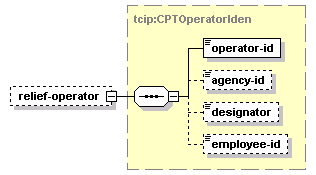

element tcip:SCHTripDetailInfo/relief-operator

diagram
type	tcip:CPTOperatorIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	operator-id agency-id designator employee-id
source	<xs:element name="relief-operator" type="CPTOperatorIden" minOccurs="0"/>

element tcip:SCHTripDetailInfo/relief-vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="relief-vehicle" type="CPTVehicleIden" minOccurs="0"/>

element tcip:SCHTripDetailInfo/localSCHTripDetailInfo

diagram
type	SCHTripDetailInfo
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localSCHTripDetailInfo" type="local:SCHTripDetailInfo" minOccurs="0"/>
