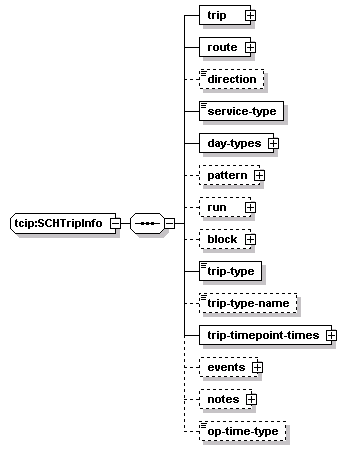

complexType tcip:SCHTripInfo

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	trip route direction service-type day-types pattern run block trip-type trip-type-name trip-timepoint-times events notes op-time-type
used by	elements  tcip:SchPushRouteSchedule/scheduleBTrips/scheduleBTrip tcip:SchPushRouteSchedule/scheduledATrips/scheduledATrip tcip:SchRouteSchedule/scheduledATrips/scheduledATrip tcip:SCHPTVRouteScheduleEntry/scheduledATrips/scheduledATrip tcip:SchRouteSchedule/scheduledBTrips/scheduledBTrip tcip:SCHPTVRouteScheduleEntry/scheduledBTrips/scheduledBTrip tcip:SCHBlockScheduleEntry/trip-details/trip-detail tcip:SCHRunScheduleEntry/trip-details/trip-detail tcip:SCHTripDetailInfo/tripInfo
source	<xs:complexType name="SCHTripInfo">   <xs:sequence>     <xs:element name="trip" type="SCHTripIden"/>     <xs:element name="route" type="SCHRouteIden"/>     <xs:element name="direction" type="SCH-RouteDirectionName" minOccurs="0"/>     <xs:element name="service-type" type="SCH-ServiceType"/>     <xs:element name="day-types">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="day-type" type="SCH-DayType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="pattern" type="SCHPatternIden" minOccurs="0"/>     <xs:element name="run" type="SCHRunIden" minOccurs="0"/>     <xs:element name="block" type="SCHBlockIden" minOccurs="0"/>     <xs:element name="trip-type" type="SCH-TripType"/>     <xs:element name="trip-type-name" type="SCH-TripTypeDescription" minOccurs="0"/>     <xs:element name="trip-timepoint-times">       <xs:complexType>         <xs:sequence maxOccurs="500">           <xs:element name="trip-timepoint-time" type="SCH-Time"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="events" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="500">           <xs:element name="event" type="SCHEvent"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="notes" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="50">           <xs:element name="note" type="SCHNoteIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="op-time-type" type="SCH-OperatingTimeType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHTripInfo/trip

diagram
type	tcip:SCHTripIden
properties	isRef  0 content  complex
children	trip-id agency-id designator
source	<xs:element name="trip" type="SCHTripIden"/>

element tcip:SCHTripInfo/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden"/>

element tcip:SCHTripInfo/direction

diagram
type	tcip:SCH-RouteDirectionName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="direction" type="SCH-RouteDirectionName" minOccurs="0"/>

element tcip:SCHTripInfo/service-type

diagram
type	tcip:SCH-ServiceType
properties	isRef  0 content  simple
source	<xs:element name="service-type" type="SCH-ServiceType"/>

element tcip:SCHTripInfo/day-types

diagram
properties	isRef  0 content  complex
children	day-type
source	<xs:element name="day-types">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="day-type" type="SCH-DayType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHTripInfo/day-types/day-type

diagram
type	tcip:SCH-DayType
properties	isRef  0 content  simple
source	<xs:element name="day-type" type="SCH-DayType"/>

element tcip:SCHTripInfo/pattern

diagram
type	tcip:SCHPatternIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pattern-id agency-id designator name
source	<xs:element name="pattern" type="SCHPatternIden" minOccurs="0"/>

element tcip:SCHTripInfo/run

diagram
type	tcip:SCHRunIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	run-id agency-id designator
source	<xs:element name="run" type="SCHRunIden" minOccurs="0"/>

element tcip:SCHTripInfo/block

diagram
type	tcip:SCHBlockIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	block-id agency-id block-designator block-name
source	<xs:element name="block" type="SCHBlockIden" minOccurs="0"/>

element tcip:SCHTripInfo/trip-type

diagram
type	tcip:SCH-TripType
properties	isRef  0 content  simple
source	<xs:element name="trip-type" type="SCH-TripType"/>

element tcip:SCHTripInfo/trip-type-name

diagram
type	tcip:SCH-TripTypeDescription
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="trip-type-name" type="SCH-TripTypeDescription" minOccurs="0"/>

element tcip:SCHTripInfo/trip-timepoint-times

diagram
properties	isRef  0 content  complex
children	trip-timepoint-time
source	<xs:element name="trip-timepoint-times">   <xs:complexType>     <xs:sequence maxOccurs="500">       <xs:element name="trip-timepoint-time" type="SCH-Time"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHTripInfo/trip-timepoint-times/trip-timepoint-time

diagram
type	tcip:SCH-Time
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="trip-timepoint-time" type="SCH-Time"/>

element tcip:SCHTripInfo/events

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	event
source	<xs:element name="events" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="500">       <xs:element name="event" type="SCHEvent"/>     </xs:sequence>   </xs:complexType> </xs:element>

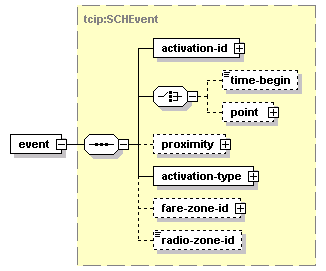

element tcip:SCHTripInfo/events/event

diagram
type	tcip:SCHEvent
properties	isRef  0 content  complex
children	activation-id time-begin point proximity activation-type fare-zone-id radio-zone-id
source	<xs:element name="event" type="SCHEvent"/>

element tcip:SCHTripInfo/notes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	note
source	<xs:element name="notes" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="50">       <xs:element name="note" type="SCHNoteIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHTripInfo/notes/note

diagram
type	tcip:SCHNoteIden
properties	isRef  0 content  complex
children	note-id agency-id note-des
source	<xs:element name="note" type="SCHNoteIden"/>

element tcip:SCHTripInfo/op-time-type

diagram
type	tcip:SCH-OperatingTimeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="op-time-type" type="SCH-OperatingTimeType" minOccurs="0"/>
