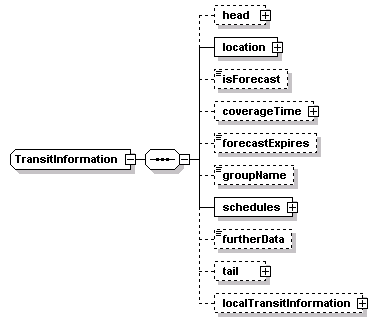

complexType TransitInformation
diagram
namespace http://www.ATIS-Draft-03-00-79
children head location isForecast coverageTime forecastExpires groupName schedules furtherData tail localTransitInformation
used by
element ResponseGroup/transit
source <xs:complexType name="TransitInformation">
  <xs:sequence>
    <xs:element name="head" type="Head" minOccurs="0"/>
    <xs:element name="location" type="lrms:LocationReference"/>
    <!-- location for which this applies -->
    <xs:element name="isForecast" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- forecast or predicted period -->
    <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>
    <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>
    <xs:element name="groupName" type="Name" minOccurs="0"/>
    <!-- run,  route,  or service name -->
    <xs:element name="schedules">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="schedule">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="serviceName" type="Name" minOccurs="0"/>
                <!-- run,  route,  or service name -->
                <xs:element name="notes" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence maxOccurs="1000">
                      <xs:element name="note" type="tcip:SCHNoteInfo"/>
                      <!-- notes for all included timetables -->
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:element name="timepoints">
                  <xs:complexType>
                    <xs:sequence maxOccurs="10000">
                      <xs:element name="timepoint" type="tcip:PITimetableTimepoint"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:element name="timetables">
                  <xs:complexType>
                    <xs:sequence maxOccurs="1000">
                      <xs:element name="timetable" type="tcip:PIXMLTimetable"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
    <xs:element name="tail" type="Tail" minOccurs="0"/>
    <xs:element name="localTransitInformation" type="local:TransitInformation" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

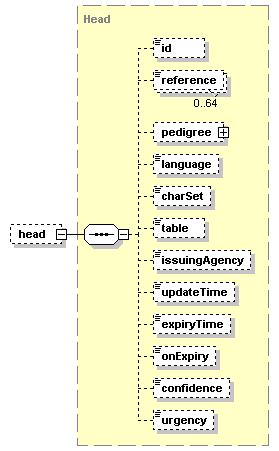

element TransitInformation/head
diagram
type Head
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source <xs:element name="head" type="Head" minOccurs="0"/>

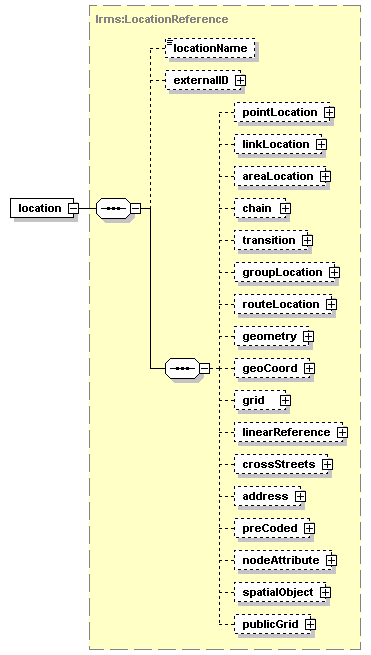

element TransitInformation/location
diagram
type lrms:LocationReference
properties
isRef 0
content complex
children locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes
Name  Type  Use  Default  Fixed  annotation
locationIDlrms:String-index64
source <xs:element name="location" type="lrms:LocationReference"/>

element TransitInformation/isForecast
diagram
type restriction of xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="isForecast" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

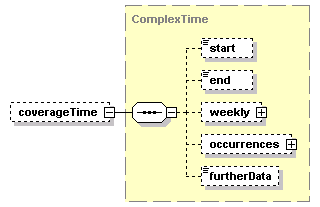

element TransitInformation/coverageTime
diagram
type ComplexTime
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children start end weekly occurrences furtherData
source <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>

element TransitInformation/forecastExpires
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>

element TransitInformation/groupName
diagram
type Name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="groupName" type="Name" minOccurs="0"/>

element TransitInformation/schedules
diagram
properties
isRef 0
content complex
children schedule
source <xs:element name="schedules">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="schedule">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="serviceName" type="Name" minOccurs="0"/>
            <!-- run,  route,  or service name -->
            <xs:element name="notes" minOccurs="0">
              <xs:complexType>
                <xs:sequence maxOccurs="1000">
                  <xs:element name="note" type="tcip:SCHNoteInfo"/>
                  <!-- notes for all included timetables -->
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="timepoints">
              <xs:complexType>
                <xs:sequence maxOccurs="10000">
                  <xs:element name="timepoint" type="tcip:PITimetableTimepoint"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="timetables">
              <xs:complexType>
                <xs:sequence maxOccurs="1000">
                  <xs:element name="timetable" type="tcip:PIXMLTimetable"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TransitInformation/schedules/schedule
diagram
properties
isRef 0
content complex
children serviceName notes timepoints timetables
source <xs:element name="schedule">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="serviceName" type="Name" minOccurs="0"/>
      <!-- run,  route,  or service name -->
      <xs:element name="notes" minOccurs="0">
        <xs:complexType>
          <xs:sequence maxOccurs="1000">
            <xs:element name="note" type="tcip:SCHNoteInfo"/>
            <!-- notes for all included timetables -->
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="timepoints">
        <xs:complexType>
          <xs:sequence maxOccurs="10000">
            <xs:element name="timepoint" type="tcip:PITimetableTimepoint"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="timetables">
        <xs:complexType>
          <xs:sequence maxOccurs="1000">
            <xs:element name="timetable" type="tcip:PIXMLTimetable"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TransitInformation/schedules/schedule/serviceName
diagram
type Name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="serviceName" type="Name" minOccurs="0"/>

element TransitInformation/schedules/schedule/notes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children note
source <xs:element name="notes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="note" type="tcip:SCHNoteInfo"/>
      <!-- notes for all included timetables -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TransitInformation/schedules/schedule/notes/note
diagram
type tcip:SCHNoteInfo
properties
isRef 0
content complex
children note metadata public note-text localSCHNoteInfo
source <xs:element name="note" type="tcip:SCHNoteInfo"/>

element TransitInformation/schedules/schedule/timepoints
diagram
properties
isRef 0
content complex
children timepoint
source <xs:element name="timepoints">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="timepoint" type="tcip:PITimetableTimepoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

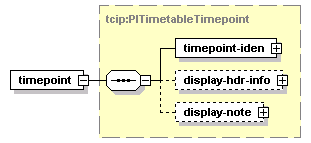

element TransitInformation/schedules/schedule/timepoints/timepoint
diagram
type tcip:PITimetableTimepoint
properties
isRef 0
content complex
children timepoint-iden display-hdr-info display-note
source <xs:element name="timepoint" type="tcip:PITimetableTimepoint"/>

element TransitInformation/schedules/schedule/timetables
diagram
properties
isRef 0
content complex
children timetable
source <xs:element name="timetables">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="timetable" type="tcip:PIXMLTimetable"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

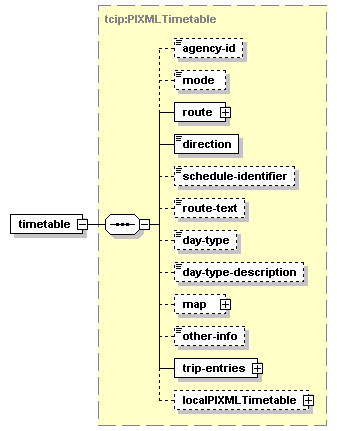

element TransitInformation/schedules/schedule/timetables/timetable
diagram
type tcip:PIXMLTimetable
properties
isRef 0
content complex
children agency-id mode route direction schedule-identifier route-text day-type day-type-description map other-info trip-entries localPIXMLTimetable
source <xs:element name="timetable" type="tcip:PIXMLTimetable"/>

element TransitInformation/furtherData
diagram
type URL-Link
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element TransitInformation/tail
diagram
type Tail
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children entry
source <xs:element name="tail" type="Tail" minOccurs="0"/>

element TransitInformation/localTransitInformation
diagram
type local:TransitInformation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localTransitInformation" type="local:TransitInformation" minOccurs="0"/>
