complexType SubRoute

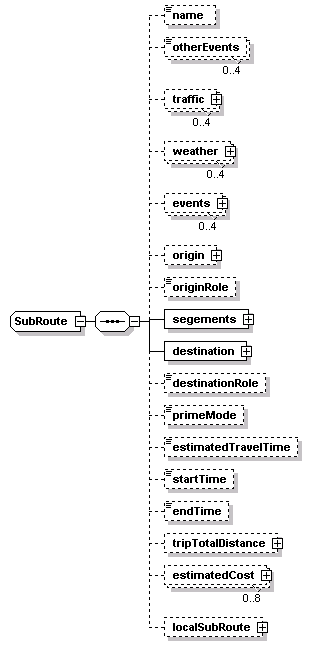

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	name otherEvents traffic weather events origin originRole segements destination destinationRole primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost localSubRoute
used by	element  Route/subroutes
source	<xs:complexType name="SubRoute">   <xs:sequence>     <xs:element name="name" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:minLength value="1"/>           <xs:maxLength value="64"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="otherEvents" type="im:ReferenceID" minOccurs="0" maxOccurs="4"/>     <xs:element name="traffic" type="LinkTrafficInformation" minOccurs="0" maxOccurs="4"/>     <xs:element name="weather" type="WeatherInformation" minOccurs="0" maxOccurs="4"/>     <xs:element name="events" type="ResponseGroup" minOccurs="0" maxOccurs="4"/>     <xs:element name="origin" type="lrms:PointLocation" minOccurs="0"/>     <xs:element name="originRole" type="PointRole" minOccurs="0"/>     <xs:element name="segements">       <xs:complexType>         <xs:sequence maxOccurs="50">           <xs:element name="segement" type="Segment"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="destination" type="lrms:PointLocation"/>     <xs:element name="destinationRole" type="PointRole" minOccurs="0"/>     <xs:element name="primeMode" type="Mode" minOccurs="0"/>     <!-- primary mode of travel -->     <xs:element name="estimatedTravelTime" type="TimeInterval" minOccurs="0"/>     <xs:element name="startTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="endTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="tripTotalDistance" type="lrms:Distance" minOccurs="0"/>     <xs:element name="estimatedCost" type="ComplexCost" minOccurs="0" maxOccurs="8"/>     <xs:element name="localSubRoute" type="local:SubRoute" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element SubRoute/name

diagram
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="name" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="64"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SubRoute/otherEvents

diagram
type	im:ReferenceID
properties	isRef  0 minOcc  0 maxOcc  4 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="otherEvents" type="im:ReferenceID" minOccurs="0" maxOccurs="4"/>

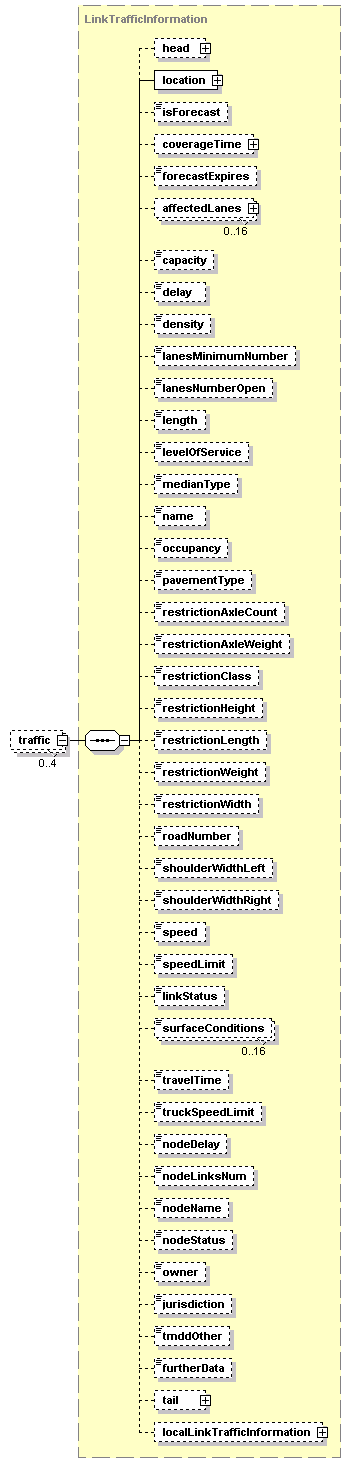

element SubRoute/traffic

diagram
type	LinkTrafficInformation
properties	isRef  0 minOcc  0 maxOcc  4 content  complex
children	head location isForecast coverageTime forecastExpires affectedLanes capacity delay density lanesMinimumNumber lanesNumberOpen length levelOfService medianType name occupancy pavementType restrictionAxleCount restrictionAxleWeight restrictionClass restrictionHeight restrictionLength restrictionWeight restrictionWidth roadNumber shoulderWidthLeft shoulderWidthRight speed speedLimit linkStatus surfaceConditions travelTime truckSpeedLimit nodeDelay nodeLinksNum nodeName nodeStatus owner jurisdiction tmddOther furtherData tail localLinkTrafficInformation
source	<xs:element name="traffic" type="LinkTrafficInformation" minOccurs="0" maxOccurs="4"/>

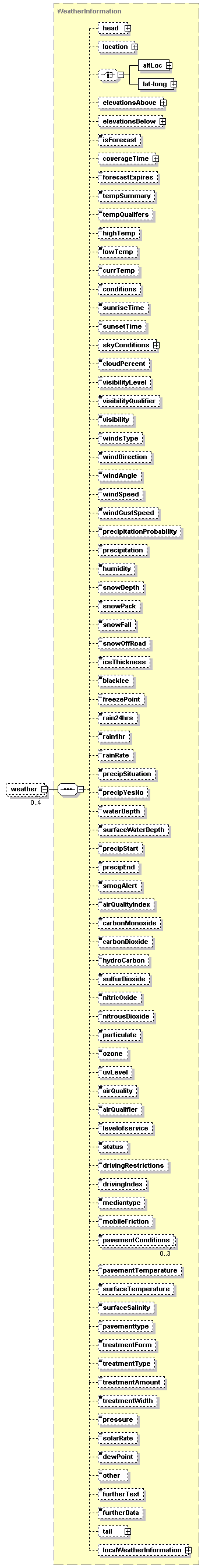

element SubRoute/weather

diagram
type	WeatherInformation
properties	isRef  0 minOcc  0 maxOcc  4 content  complex
children	head location altLoc lat-long elevationsAbove elevationsBelow isForecast coverageTime forecastExpires tempSummary tempQualifers highTemp lowTemp currTemp conditions sunriseTime sunsetTime skyConditions cloudPercent visibilityLevel visibilityQualifier visibility windsType windDirection windAngle windSpeed windGustSpeed precipitationProbability precipitation humidity snowDepth snowPack snowFall snowOffRoad iceThickness blackIce freezePoint rain24hrs rain1hr rainRate precipSituation precipYesNo waterDepth surfaceWaterDepth precipStart precipEnd smogAlert airQualityIndex carbonMonoxide carbonDioxide hydroCarbon sulfurDioxide nitricOxide nitrousDioxide particulate ozone uvLevel airQuality airQualifier levelofservice status drivingRestrictions drivingIndex mediantype mobileFriction pavementConditions pavementTemperature surfaceTemperature surfaceSalinity pavementtype treatmentForm treatmentType treatmentAmount treatmentWidth pressure solarRate dewPoint other furtherText furtherData tail localWeatherInformation
source	<xs:element name="weather" type="WeatherInformation" minOccurs="0" maxOccurs="4"/>

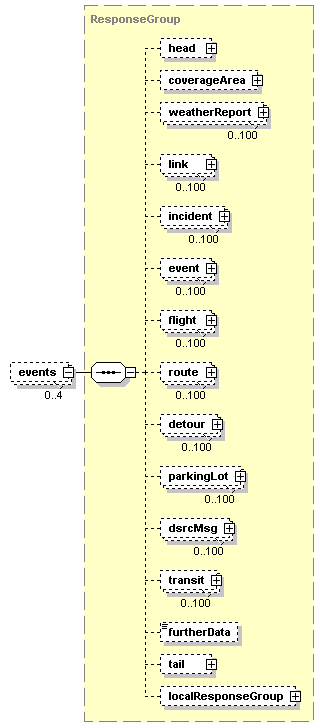

element SubRoute/events

diagram
type	ResponseGroup
properties	isRef  0 minOcc  0 maxOcc  4 content  complex
children	head coverageArea weatherReport link incident event flight route detour parkingLot dsrcMsg transit furtherData tail localResponseGroup
source	<xs:element name="events" type="ResponseGroup" minOccurs="0" maxOccurs="4"/>

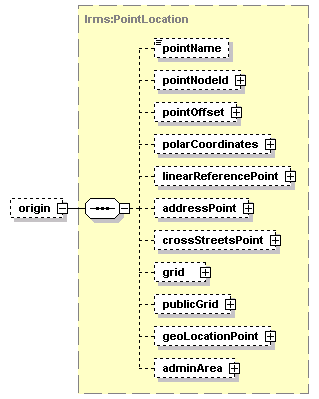

element SubRoute/origin

diagram
type	lrms:PointLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="origin" type="lrms:PointLocation" minOccurs="0"/>

element SubRoute/originRole

diagram
type	PointRole
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="originRole" type="PointRole" minOccurs="0"/>

element SubRoute/segements

diagram
properties	isRef  0 content  complex
children	segement
source	<xs:element name="segements">   <xs:complexType>     <xs:sequence maxOccurs="50">       <xs:element name="segement" type="Segment"/>     </xs:sequence>   </xs:complexType> </xs:element>

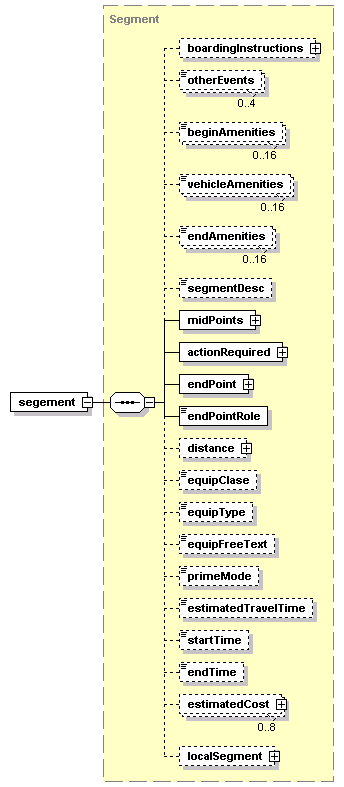

element SubRoute/segements/segement

diagram
type	Segment
properties	isRef  0 content  complex
children	boardingInstructions otherEvents beginAmenities vehicleAmenities endAmenities segmentDesc midPoints actionRequired endPoint endPointRole distance equipClase equipType equipFreeText primeMode estimatedTravelTime startTime endTime estimatedCost localSegment
source	<xs:element name="segement" type="Segment"/>

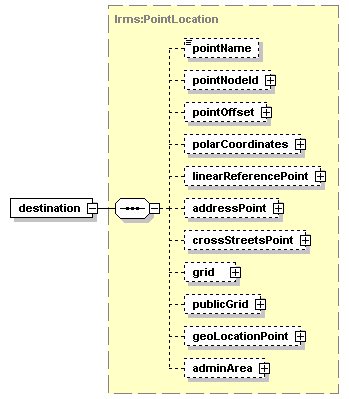

element SubRoute/destination

diagram
type	lrms:PointLocation
properties	isRef  0 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="destination" type="lrms:PointLocation"/>

element SubRoute/destinationRole

diagram
type	PointRole
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="destinationRole" type="PointRole" minOccurs="0"/>

element SubRoute/primeMode

diagram
type	Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="primeMode" type="Mode" minOccurs="0"/>

element SubRoute/estimatedTravelTime

diagram
type	TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="estimatedTravelTime" type="TimeInterval" minOccurs="0"/>

element SubRoute/startTime

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="startTime" type="DateTimePair" minOccurs="0"/>

element SubRoute/endTime

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="endTime" type="DateTimePair" minOccurs="0"/>

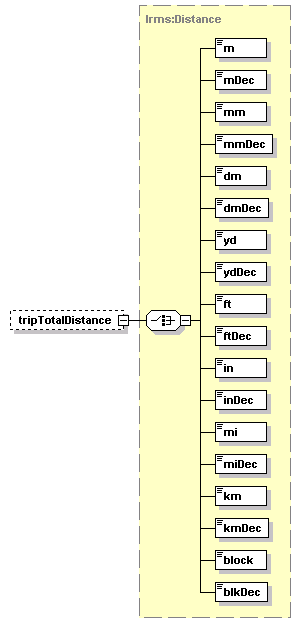

element SubRoute/tripTotalDistance

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="tripTotalDistance" type="lrms:Distance" minOccurs="0"/>

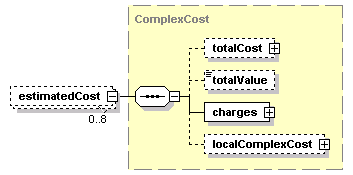

element SubRoute/estimatedCost

diagram
type	ComplexCost
properties	isRef  0 minOcc  0 maxOcc  8 content  complex
children	totalCost totalValue charges localComplexCost
source	<xs:element name="estimatedCost" type="ComplexCost" minOccurs="0" maxOccurs="8"/>

element SubRoute/localSubRoute

diagram
type	local:SubRoute
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localSubRoute" type="local:SubRoute" minOccurs="0"/>
